Riders Star Group Ltd - Automatic Candle Making Production Line
The Automatic Candle Making Production Line by Riders Star Group Ltd is a fully automated system designed for the production of glass candles, such as tealight or votive glass cup candles.

Key Features:

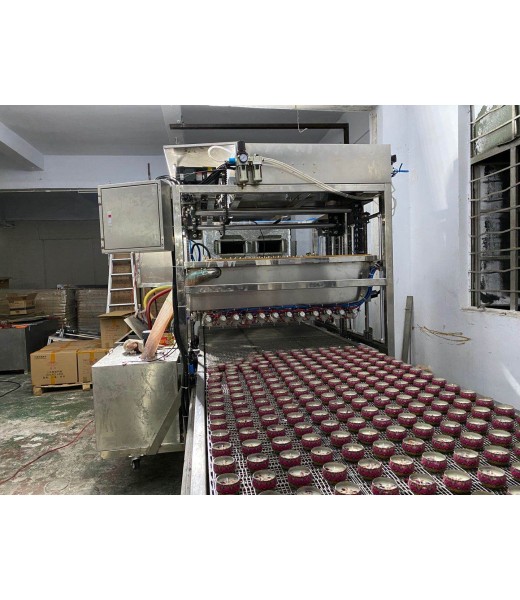

The line's main component is a mesh conveyor that efficiently transports multiple containers in rows directly beneath a set of dosing nozzles. These nozzles are connected to the paraffin Melter, ensuring precise filling of containers. As a standard, the production line includes two dosing stations for the main chamber and refills, providing seamless, continuous production.

Production Process:
1. Filling
The conveyor transports containers under the dosing stations, filling them with melted paraffin.
2. Cooling
The filled containers are cooled using high-efficiency fans, with the option of integrating an air-conditioning system for enhanced cooling.
3. Custom Configuration
The line’s length, width, and number of nozzles can be customized according to the customer's production requirements and plant size.

Possible Configurations and Add-ons:

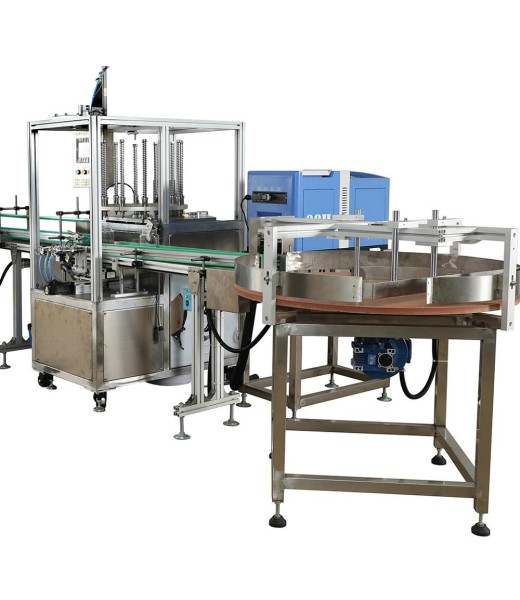

  • 1. Wick Inserting Machine: Automates the process of placing wicks into candle containers.
  • 2. Automatic Loading/Unloading System: Streamlines production by automating the movement of containers on and off the line.
  • 3. Swiveling Wheels & Conveyor Belts: Ensures smooth, flexible movement across the production area.
  • 4. Container Pre-heating System: Prepares containers for optimal paraffin adhesion.

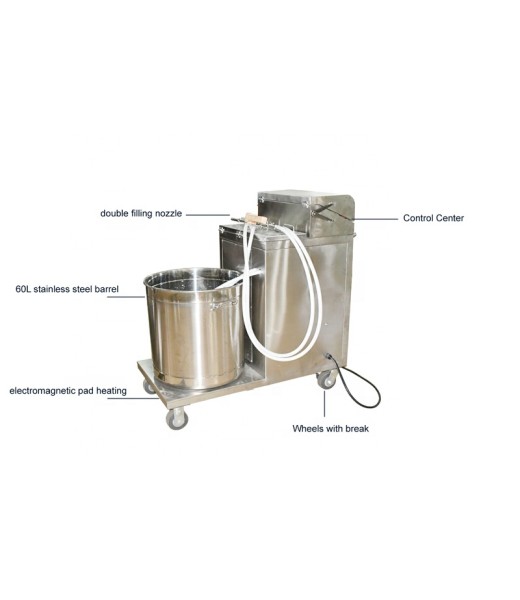

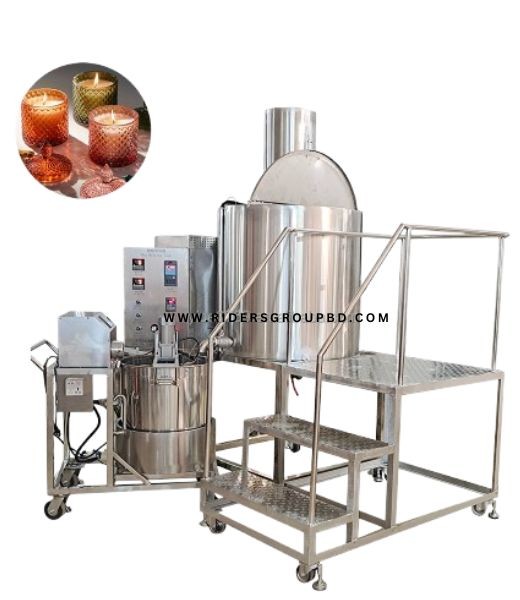

  • 5. Dosing Stations with Melter: Ensures precision in paraffin dispensing.
  • 6. Fan Stations: Cools filled candles efficiently.
  • 7. Mesh Cleaning System: Removes paraffin residue from the conveyor, ensuring a clean production environment.
  • 8. Labelling Machine: Adds labels to the finished candles.
  • 9. Packing Machine: Prepares finished candles for shipping.

This automated production line is fully adaptable, designed to maximize efficiency and streamline candle manufacturing for large-scale operations.

Candle Making Machine Production Line | মোমবাতি তৈরির জন্য Wax Melter সহ Automatic Production Line

(0)
Product Brochure
4500000

আমাদের কাছ থেকে কোনো মেশিন পাওয়ার জন্য অর্ডার করা আবশ্যক। অর্ডারের সময় 50–70% এডভান্সড করতে হবে, বাকি পেমেন্ট ডেলিভারির সময় দিতে হবে। LC, TT, Bank Transfer, Cash Payment Accept. ডেলিভারির জন্য 25 কর্মদিন সময় দিতে হবে।


Specification
Name Automatic candle making production line
Power 12-26 KW
Voltage 380V 60hz three phase
Filling nozzle 12 nozzles 1/2 sets
Filling Speed 2,000 - 10,000 Pcs/h
Filling volume 0 - 1000 g
Convey belt size Standard 24Meter length*1.2m width
Material Machine body ss201 and Contact material ss304
Machine Size 24000*1200*1700MM
Weight 3-6 Ton
Customize Yes
Specification
Name Automatic candle making production line
Power 12-26 KW
Voltage 380V 60hz three phase
Filling nozzle 12 nozzles 1/2 sets
Filling Speed 2,000 - 10,000 Pcs/h
Filling volume 0 - 1000 g
Convey belt size Standard 24Meter length*1.2m width
Material Machine body ss201 and Contact material ss304
Machine Size 24000*1200*1700MM
Weight 3-6 Ton
Customize Yes
Image 1 Image 2 Image 3
